GKE Kubernetes provisioner backend

Provision Nora agents into Google Kubernetes Engine using Nora’s generic Kubernetes adapter and Admin cluster registry.

GKE uses the same Kubernetes adapter as every Kubernetes provider. Nora stores provider, namespace, exposure, and load-balancer settings on the Admin cluster row; docker-compose.kubernetes.yml only mounts kubeconfig files into the control-plane containers.

Step-by-step setup

1. Prerequisites

GCP project with the Kubernetes Engine API enabled.
gcloud CLI installed and gcloud auth login completed.
An existing GKE cluster (or create one — GCP Console → Kubernetes Engine → Clusters → Create).
kubectl installed on the host that runs Nora.

Use the cluster details page in Google Cloud Console to confirm the GKE cluster name, location type, and region or zone before creating the kubeconfig.

GKE cluster details — Google Cloud Console — Kubernetes Engine cluster details

2. Create the kubeconfig

mkdir -p .secrets
KUBECONFIG=./.secrets/gke-kubeconfig \
  gcloud container clusters get-credentials <cluster-name> \
    --region <region> \
    --project <project-id>

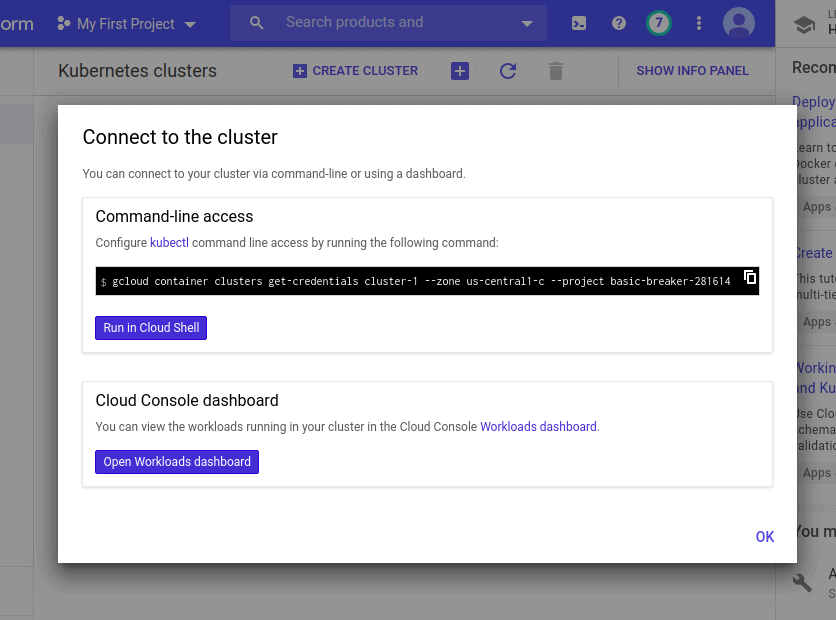

Use --zone <zone> instead of --region <region> for zonal clusters. You can copy the exact command from the cluster’s Connect dialog.

GKE Connect dialog — Google Cloud Console — Cluster → Connect dialog (get-credentials command)

3. Verify access from the host

kubectl --kubeconfig ./.secrets/gke-kubeconfig get nodes

4. Configure Nora

Set the generic Kubernetes mount variable in .env:

mkdir -p ./.secrets/kubeconfigs
cp ./.secrets/gke-kubeconfig ./.secrets/kubeconfigs/gke-us-central1
NORA_KUBECONFIGS_DIR=./.secrets/kubeconfigs

For two or more GKE clusters, put each kubeconfig under NORA_KUBECONFIGS_DIR and use Admin paths such as /kubeconfigs/gke-us-central1 and /kubeconfigs/gke-us-east1. Confirm region / VPC alignment in the Console’s Networking tab before exposing services to the public internet.

GKE networking review — Google Cloud Console — create cluster review with Networking complete

5. Start the stack

docker compose -f docker-compose.yml -f docker-compose.kubernetes.yml up -d --build

This smoke-mode command is for the local nginx config (NGINX_CONFIG_FILE=nginx.conf, usually NGINX_HTTP_PORT=8080). If your .env already points to the public TLS config (NGINX_CONFIG_FILE=nginx.public.conf), include the tracked infra/docker-compose.public-tls.yml layer as shown in Promote to production; otherwise nginx will not mount /etc/letsencrypt and Cloudflare can return 521 because the origin web server is down.

6. Register this cluster in Admin

Open Admin -> Kubernetes, click Add cluster, and use these values:

Field	Value
Cluster id	`gke-us-central1`
Label	`GKE US Central 1`
Provider	`GKE`
Actual cluster name	The GKE cluster name from the Console
Credential mode	`Mounted kubeconfig path`
Kubeconfig path	`/kubeconfigs/gke-us-central1`
Fallback namespace	`nora-openclaw-agents`
OpenClaw namespace	`nora-openclaw-agents`
Hermes namespace	`nora-hermes-agents`
Exposure mode	`LoadBalancer`
Service annotations JSON	Leave empty unless your cluster policy requires annotations such as `{"cloud.google.com/l4-rbs":"enabled"}`
Source ranges	Your Nora control-plane egress CIDR when you can restrict access
Load balancer class	Leave empty by default, or use `networking.gke.io/l4-regional-external` when your cluster supports it

Do not put ./.secrets/gke-kubeconfig in the Admin Kubeconfig path when Nora runs in Docker Compose. That is the host-side path; the containers see files from NORA_KUBECONFIGS_DIR under /kubeconfigs.

7. Deploy a test agent

Open the dashboard at http://127.0.0.1:8080, sign in, and create an agent with the GKE cluster label you registered.

Deploy wizard backend
picker — Nora deploy wizard — Backend dropdown showing Kubernetes on GKE

Deploy wizard Kubernetes
selected — Nora deploy wizard — Kubernetes on GKE selected

Agent detail K8s — Agent detail — status running with the GKE LoadBalancer address

GKE Service options

The default GKE LoadBalancer Service path works without annotations. To request GKE’s external passthrough Network Load Balancer with RBS on supported cluster versions, set: Set the Admin Load balancer class field to networking.gke.io/l4-regional-external. For clusters that use the annotation path instead of loadBalancerClass:

{ "cloud.google.com/l4-rbs": "enabled" }

Leave Service annotations JSON empty unless your cluster policy requires provider-specific Service annotations.

Verification

kubectl --kubeconfig ./.secrets/gke-kubeconfig -n nora-openclaw-agents get deploy,svc,pods
# If Hermes is enabled and deployed:
kubectl --kubeconfig ./.secrets/gke-kubeconfig -n nora-hermes-agents get deploy,svc,pods
docker compose -f docker-compose.yml -f docker-compose.kubernetes.yml logs worker-provisioner

For real e2e, enable the Kubernetes matrix cell:

cd e2e
REAL_ENABLE_OPENCLAW_DOCKER=0 REAL_ENABLE_OPENCLAW_K8S=1 \
  BASE_URL=http://localhost:8080 npm run test:real:matrix

Agent logs K8s — Logs tab — worker-provisioner output during a successful GKE deploy

Automated smoke

Once your GKE kubeconfig is in place, run the shared lifecycle smoke:

cd e2e
KUBECONFIG_PATH=$PWD/../.secrets/gke-kubeconfig npm run smoke:k8s-gke

This script is operator-run only — it provisions real workloads against a live GKE cluster and is not part of CI. Set KEEP_ENV=true to leave the stack running after the script finishes.

Promote to production

Once the smoke is green, switch from the dev-mode stack to the prod-mode stack. The only changes vs the testing setup are nginx (public config + TLS) and Compose mode (infra/docker-compose.public-tls.yml for prod Dockerfiles, TLS mounts, public ports, and restart policies).

1. Tighten the LoadBalancer source ranges

Replace the smoke-time <nora-control-plane-egress-cidr> placeholder with your production control plane’s egress CIDR. Combine with cloud.google.com/load-balancer-type: Internal annotations if you’re keeping agents on a private subnet.

2. Switch nginx to public + TLS

In .env:

NGINX_CONFIG_FILE=nginx.public.conf
NGINX_HTTP_PORT=80

Provision Let’s Encrypt certs once:

sudo ./infra/setup-tls.sh <your-domain>

3. Stop the smoke-mode stack

docker compose -f docker-compose.yml -f docker-compose.kubernetes.yml down

4. Start the prod-mode stack

docker compose \
  -f docker-compose.yml \
  -f infra/docker-compose.public-tls.yml \
  -f docker-compose.kubernetes.yml \
  up -d --build

5. Confirm

docker compose ps
curl -fsS https://<your-domain>/api/health
docker compose logs worker-provisioner | tail -50

Deploy a real agent from the UI and confirm it reaches running and the GKE LoadBalancer assigns an external IP.
